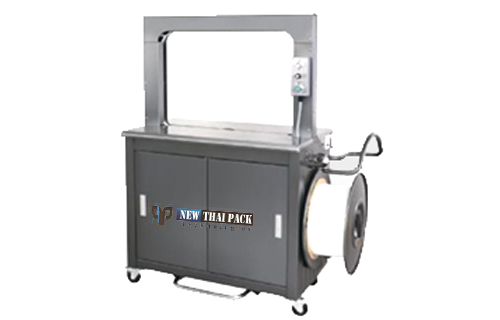

Fully Automatic Strapping Machine

For 5mm Strapping

We have engraved a distinct and dynamic position in the business by presenting a high quality array of Fully Automatic Strapping Machine. Our respected customers use these fully automatic machines for several packaging purposes in varied industrial applications. These machines are fully automatic which are controlled by the microcomputer and have simple functions to operate easily. We make sure to use best polishing method to avoid oxidation and hence giving them a durable shine.

Model NTP-305W
Power Source 1Phase / 220V / 50-60HZ / 0.6KW
Packing Speed 50path / min
Tension Force 0-45kg
Hot-adhering Position Bottom
Table Height 850mm
Frame 1. Standard Size: Width 650mm X Height 500mm (nner size)
2. Material: Iron frame (It’s possible to customize size)
Applicable Strap Width 5-9mm Thickness(0.5-0.8)mm
Applicable Strap Spool Inner Dia.:210mm
Packing Type Parallel 1~several, manual packing, continual packing, foot switch
Electrical Configuration PC board control
Button Switch:French “TE”
Middle Relay:French “Schneider”
Motor:Chinese “MEIWA” DC motor
Sensor Switch and Proximity Switch :German “P+F”
Machine Dimensions L1180mm × W620mm × H1450mm
Noise ≤75DB
Environment Condition Humidity≤98%, temperature 0-40℃
Bottom Adhesion Adhesive surface≥90%, adhesive width≥20%, deviation of adhesive position≤2mm
