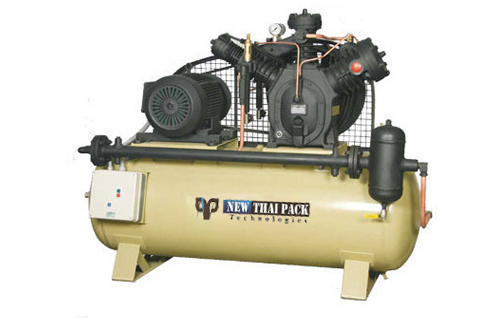

High Pressure Air Compressor

In line with clients' exact requirements, we bring forth a distinguished collection of a-1 high pressure air compressors. These compressors are created to build up air and then release it with great force.

In this compressor air can be pressurized to higher pressure in the range of 25 to 70 kg/cm2. A-1 high pressure air compressors are designed at our ultra-modern manufacturing unit using the superb quality material and progressive technology in conformance with defined quality standards. Being a quality-oriented organization, we assure our clients that these compressors are excellent on counts of durability and quality.

Features :

• Sturdy structure
• Durability
• Low maintenance

Specifications :

• Working pressure: upto 70 kg/cm2
• 3 hp to 40 h.P
• Air cooled & water cooled models.

Technical Specifications :

Model	Motor HP	Compressor RPM	No.of Cylinders	CFM		Maximum Pressure		Air Receiver (ltrs.)
				PD	FAD	psig	kg/cm2g
331	3.00	866	2	7.40	4.80	500	35	150
107T2	7.50	550	2	24.75	14.50	500	35	300/500
107T2	12.50	900	2	36.00	21.60	500	35	300/500
115T2	15.00	675	3	41.25	31.41	500	35	300/500
115T2	20.00	900	3	49.50	37.00	640	45	300/500
115T2 DUPLEX	20+20	900	3	99.00	75.00	640	45	500
115TH	20.00	825	3	75.00	52.00	355	25	300/500
115TH DUPLEX	20+20	825	3+3	150.00	104.00	355	25	500
