Stretch Wrapping Machine

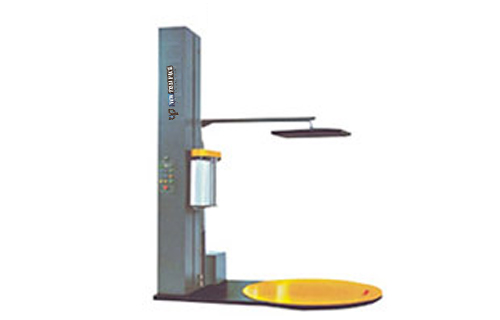

Pallet Stretch Wrapping Machine

Owing to rich experience and knowledge, we manufacture, supply and export high quality Pallet Stretch Wrapping Machines. We treat quality as never ending process and get our range checked by quality tested by experts from time to time. Pallet Stretch Wrapping Machines beautifully pack and wrap the boxes efficiently. We also offer customized services to the clients for their convenience.

Specification :

Model Pallet Stretch Wrapping Machine NTP 2100
Max Wrapping Size(LXWXH) (Max)(mm) (500 -1200) x ( 500 -1200)
Wrapping Efficiency(loads/hour) 20 - 40
Turntable Speed(rpm/min) 3-12
Turntable Diameter(mm) Ø : 1650 / H : 85
Turntable Loading (max)(kg) 2000
Electrical requirement ( V/Hz) 220 / 50
Power (kw) Turntable:0.75 Film, Carriage:0.4; Steel Tower:0.37
Film Carriage Pre-Stretch Type
Control System PLC
Top Plate Device Pneumatic Direct Transmit, Orbit Top Plate
Weight (kg) 800 kg
Machine Dimension (mm) L Type:2745 x 1650 x 2700 /H Type : 2745 x 1650 x 3300
