Carton Sealing Machine

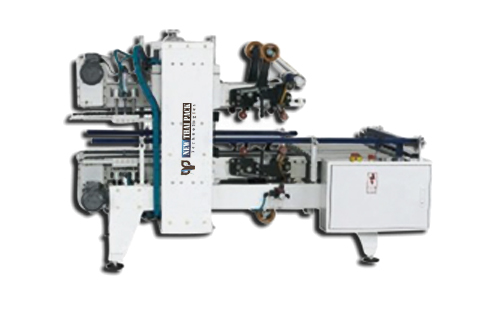

Edge Carton Sealing Machine

We have engraved a distinct and dynamic position in the business by presenting a high quality array of Edge Carton Sealing Machine Our respected customers use these fully automatic machines for several packaging purposes in varied industrial applications. These machines are fully automatic which are controlled by the microcomputer and have simple functions to operate easily. We make sure to use best polishing method to avoid oxidation and hence giving them a durable shine.

power supply 1P 110V/220V 50Hz/60Hz 1000W(5 motors)
machine dimensions L2200mm×W1240mm×H(table height+800mm)
machine weight 600kg
table height 600mm~750mm (adjustable)
convey speed 19M/min
carton dimensions L(340~670)mm,W(200~470)mm,H(200~500)mm
adhesive tape spec 48~72mm
adhesive tape material kraft paper, or, BOPP
air pressure 5kgf/cm2
air consumption 11L/min
electric & pneumatic components contactor:France “Schneider”
pushbutton switch:France “Schneider”
motor:Taiwan “Luson”
pneumatic components:Taiwan “Airtac”
other:France “TE” and other famous brand switch
working noise ≤75DB
surroundings humidity≤98%,temperature0~40℃
optional (1)truckles; (2)Q304/Q201
