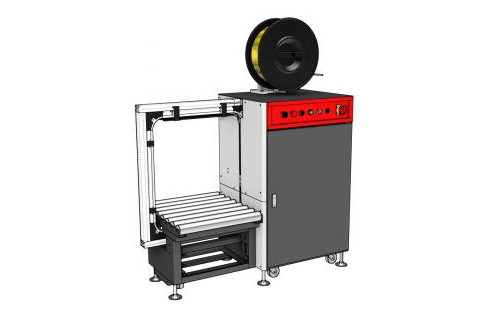

Vertical Automatic Strapping Machine

We offer diverse range of Vertical Automatic Strapping Machine which are manufactured under the vigilance of our experienced professionals in adherence with international standards. Advantages of vertical automatic machines are they reduce human efforts and provide easy operations to the operator. These machines are manufactured at our well equipped manufacturing unit in the supervision of our skilled and experienced professionals. Our machines are rigorously checked to avoid defects so that assured quality machine is delivered at clients’ end.

Features :

• Front mounted arch allows for side strapping.
• It provides automatic operations for automatic strapping
• Automatic package in-feed and out-feed
• Appropriate performance
• Easy maintenance
• Non-corrosive

Specifications :

Model	NTP-201
Dimension	1400mm W x 590mm D x 1730mm H
Arch Size	600mm W x 850mm H – standard, can be specified
Strap Coil Size	Standard: Ø200mm, Optional: Ø230mm or Ø280mm
Table Height	170mm ~ 650mm
Net Weight	200KGs
Strapping Speed	2.0 sec / strap
Maximum Tension	80KGs
Available Strap Width	9mm, 12mm or 15mm – specified
Joint of Strap	Heat Sealing
Power Supply	Single or Three Phase, 110V/220V/240V/380V, 50Hz/60Hz
