Carton Sealer For Small And Standard Cartons

Description :

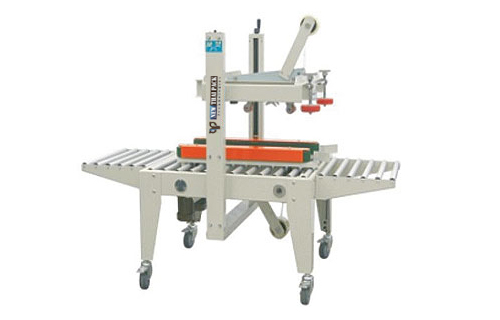

SP 102TU Carton Sealer fits for continuous sealing of Small & Standard Cartons in the different size, which can be operated alone and also can be equipped into production line.

Application :

SP 102TU Carton Sealer is widely used for small & Standard cartons in domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industry etc.

Specification :

Model	NTP 102 TU(smaller cartons )	NTP 102 TU(standerd cartons )
Voltage(V/Hz)	220/50HZ	200/50
Maximum Carton Size(LxWxH)mm	400x400	500x600
Minimum Carton Size(LxWxH)mm	100x100	140x150
Speed (m/min)	20	20
Available Adhesive tape	PVC adhesive tape, Tape	BOOP BOOP, water free adhesive tape, adhesive tape
Height of Table (mm)	580x780	635-780
Width of Adhesive Tape (mm)	36 48	48 60 76
Size(LxWxH)mm	1730 x 950 x (960 - 1550)	1755x800x(960-1650)
Weight(kg)	115	120
Air Compressor	NA	NA
Power(w)	200	200
