Fully Automatic Strapping Machine

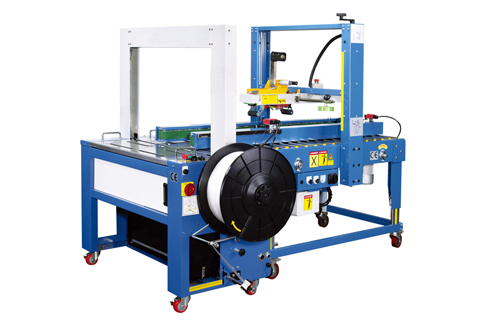

Belt Fully Automatic Strapping Machine

We offer diverse range of Belt Fully Automatic Strapping Machine which are manufactured under the vigilance of our experienced professionals in adherence with international standards. Advantages of vertical automatic machines are they reduce human efforts and provide easy operations to the operator. These machines are manufactured at our well equipped manufacturing unit in the supervision of our skilled and experienced professionals. Our machines are rigorously checked to avoid defects so that assured quality machine is delivered at clients’ end.

Features :

  • Bottom Seal
  • Belt Drive for Precise Strapping
  • Excellent for Lighter Packages
  • EMC, EMI passed
  • "CE" safety standard
  • Programmable Logic control

Our range comes with the following attributes :

  • Width & height adjustable manually
  • For uniform boxes
  • Dual side pressure rollers keep sealing tight
  • Select switch for double or single strapping
  • Reliable taping head seal box
  • Extension side belt driven
  • Integrate with automatic strapping machine A93

Options :

  • Core I.D. *400mm (16") dispenser
  • Auto feed-in (Self-loading device)
  • Short feeding sensing (re-feeding twice)
  • Strap empty alarm
  • Digital counter
  • Weld cooling delay
  • Press unit
  • Outside tension
  • Looping ejector system
  • Single phase

Specifications :

Polypropylene (PP) Strap 9, 12 or 15mm (to be specified)
Strapping Speed Approx. 24 straps / Min.
Tension Range 15-70kg
Core Size (Adjustable) 200, 230 & 280mm
Power Supply 230V/400V, 50/60Hz, 3PH
Conveying speed 20M/per min (60Hz)
