Shrink Tunnel

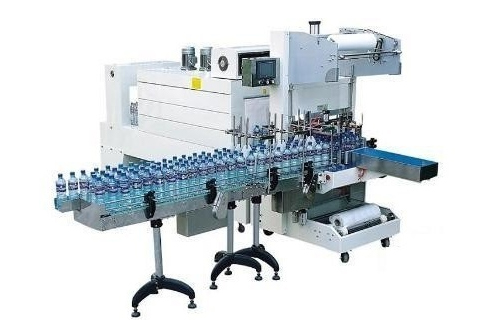

Fully Automatic Web Sealer with Tunnel

We are engaged in offering Fully Automatic Both Side Web Sealing and Shrink Tunnels that are manufactured using quality material. In these machines, the pack that is to be shrink wrapped is placed on a running conveyor belt that will automatically collect the filled bottles, jars, pots, cans and boxes into a pack. The pack, which is loosely sealed from two opposite sides, will further be pushed into the tunnel of the shrink wrapping machine and come out duly shrink wrapped from the other side. Other details of the product:

  • A pneumatic cylinder will push the pack on to a film roll that will be on the top and bottom of the machine
  • Web sealer will automatically cut and seal the opposite end

Some of the quality attributes of our range is as follows :

  • Double reel sleeve wrapping system for the bundling of any kind of cylindrical, rectangular and irregular shaped products
  • Auto Conveyor for automatic conveying of packs can be provided on LHS -/- RHS
  • On the loading table, product feeding is manually arranged with push button for the starting of the automatic cycle
  • Space saving sleeve, pneumatic pusher for automatic intake of packs
  • Individual sealing bar with twin sealing elements
  • Endless PVC or S.S. slate chain conveyor
  • Specially designed S.S. tubular finned heaters for minimum power consumption and maximum heat transfer
  • Heavy duty turbo blower for effective and efficient hot air circulation
  • Class insulation is integradted with glass wool and asbestos/calcium silicate sheet for machine panel and silicon tubing for conveyor rods
  • Over backed heat resistant power coated used
  • Lading and cooling zone provided as standard feature as outlet
  • Heavy duty A.C. motor provide with gear box and controller for heavy load conveyor
  • Stainless steel conveyor roller with silicone coated
  • Auto temperature control
  • Full heavy duty power coated tunnel covers and electric panel board
