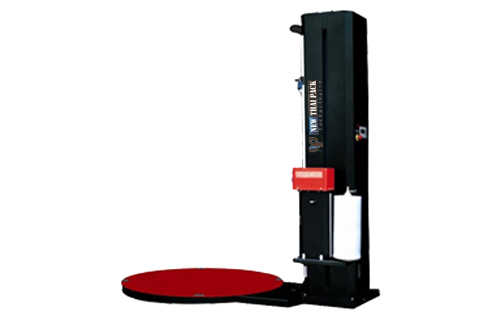

Power Pre Stretch

Machine technical data	MH-FG-2000B
Power supply	1P，AC220V，50Hz 1.25KW(pre-stretch)
Rotation speed	0-10r/min(option)
Lifting unit	Photoelectric switch controls the height
Film-stretching unit	Film tension can be automatically modified by frequency regulation(pre-stretch)
Capacity	Turntable: Φ 1500 mm：1500 kg; Turntable: ≥ Φ 1650 mm2000 kg Max package weight: 2000Kg. >2000kg (custom-made is available)
Maximum wrapping height	Total height of column - 400mm
Pre-stretch rate	250%（300% can be customer-made）
Weight of the machine	750Kg
Noise	≤75DB
Surroundings	humidity≤98%，temperature-10℃～40℃
Attachment	Ramp (option)
Dimensions of the machine	Turnplate diameter Φ1500：L2440mm×W1500mm×H(2000~3400)mm Turnplate diameter Φ1650：L2590mm×W1650mm×H(2000~3400)mm Turnplate diameter Φ1800：L2740mm×W1800mm×H(2000~3400)mm Turnplate diameter Φ2000：L2940mm×W2000mm×H(2000~3400)mm Turnplate diameter Φ2200：L3140mm×W2200mm×H(2000~3400)mm
Film	LLDPE film, width<=500mm,out diameter<=280mm
